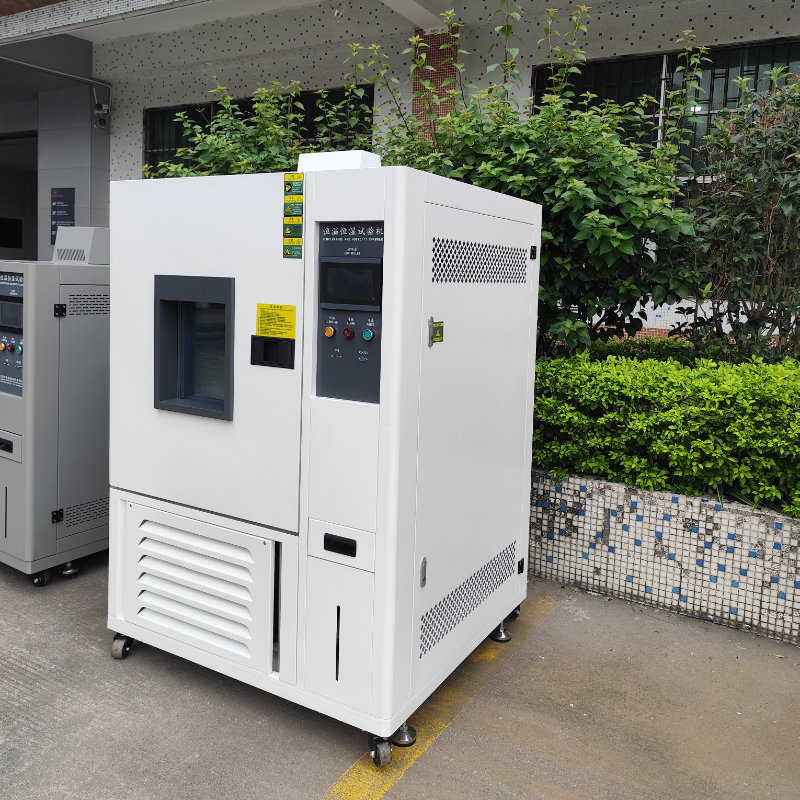

Programmable Constant Temperature Humidity Chamber Climate Simulation Tester for Plastic & Rubber Aging Test UP-6195
Product Overview
The Programmable Constant Temperature and Humidity Test Chamber is a professional climatic reliability testing instrument designed to simulate various temperature and humidity environmental conditions. It conducts comprehensive aging, durability, and performance verification tests for finished products and raw materials across multiple industries.
Featuring a high-precision PID temperature-humidity synchronous control system, this test chamber ensures stable operation with uniform internal temperature distribution. The intuitive touch-screen programming interface allows users to freely set cyclic test curves, while multiple customizable chamber volumes accommodate diverse testing requirements from small-batch laboratory tests to mass production quality inspection.
Applications
- Electronics & Electrical Components Reliability Testing
- Lithium-ion Battery Performance Evaluation
- Plastic & Rubber Materials Aging Tests
- Automotive Spare Parts Durability Testing
- Packaging Products Quality Verification
- Cosmetics Stability Testing
- New Energy Photovoltaic Module Evaluation
- Metal Materials Corrosion Testing
- Textile Accessories Performance Assessment
This chamber evaluates product performance changes under high-temperature, low-temperature, humid-heat, and alternating climatic environments.
Compliance Standards
Designed and manufactured in accordance with international climatic test specifications including:
- IEC 60068
- ASTM D1793
- MIL-STD-810
- GB/T 2423
Meets global customer certification demands for quality and reliability testing.
Technical Specifications
| Parameter |
Specification |
| Test Volume |
Customizable: 80L / 150L / 225L / 408L / 1000L |
| Temperature Range |
-70℃ ~ +150℃ (Optional) |
| Humidity Range |
20%RH ~ 98%RH |
| Temperature Fluctuation |
±0.5℃ |
| Humidity Deviation |
±2.5%RH |
| Temperature Uniformity |
≤ ±2.0℃ |
| Heating Rate |
1 ~3℃/min (Adjustable) |
| Cooling Rate |
0.7 ~1.2℃/min |
| Inner Material |
SUS304 Stainless Steel |
| Outer Shell |
High-quality Powder-coated Steel Plate |
| Control System |
Touch Screen Programmable PID Controller |
| Observation Window |
Toughened Hollow Glass Window with Internal LED Light |
| Power Supply |
AC220V / 380V, 50Hz / 60Hz |
| Water Supply Mode |
Automatic Water Supply for Humidification |
| Safety Protection |
Overheat, Overload, Low-water, Over-current Protection |
Our Service Process
- Customer Inquiry Process: Technical requirement discussions, product recommendations, and competitive pricing based on customer specifications.
- Specifications Customization: Detailed drawings and reference photos for customized requirements, final solution confirmation, and pricing agreement.
- Production and Delivery: Manufacturing according to confirmed requirements, production progress updates, factory or third-party calibration, and timely shipping arrangements.
- Installation and After-sales: Professional on-site installation and comprehensive after-sales support services.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with FREE maintenance during this period. Considering sea transportation, we extend an additional 2 months for international customers.
For technical support, contact us via email or phone. We diagnose issues through conversation or video chat and provide solutions within 24 to 48 hours after problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days
Non-stock standard machines: 15-20 working days after payment
Urgent requirements: Special arrangements available upon request
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and fully customized machines according to your specific requirements. We provide OEM and ODM services, including custom branding with your logo on the equipment.
How can I install and use the machine?
We provide comprehensive English operation manuals and instructional videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. For complex installations, we offer on-site installation assistance as needed.
